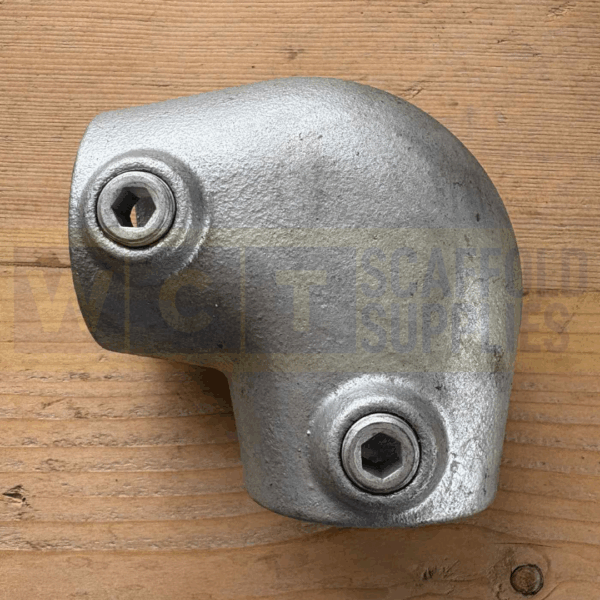

Key Clamp Angled Elbow 0–11° – 48.3mm

Create accurate corner joints on gently sloping installations with our Key Clamp Angled Elbow 0–11°. Designed for 48.3mm outside diameter tube, this heavy-duty angled key clamp elbow allows the connection angle to be adjusted between 0° and 11°, making it ideal for handrails, guardrails and safety barriers installed on gentle ramps and inclines.

Manufactured from galvanised cast iron, this durable key clamp fitting provides excellent corrosion resistance for reliable indoor and outdoor performance. The adjustable design ensures a neat, professional finish where a standard fixed elbow cannot maintain the correct rail alignment.

Compatible with standard 48.3mm outside diameter tube, the fitting is secured using integrated socket grub screws, tightened with a standard Allen key. As part of a modular key clamp system, it enables tubular structures to be assembled without welding while remaining easy to modify or extend.

This fitting is designed for installations requiring minor angle adjustment. For standard right-angle corners, our 48.3mm Key Clamp 90° Elbow provides the ideal alternative.

Key Features

• Adjustable elbow for 48.3mm tube
• Adjustable angle from 0° to 11°
• Ideal for gentle ramps and sloping handrails
• Manufactured from galvanised cast iron
• Corrosion-resistant finish
• Tightens using a standard Allen key
• Compatible with modular key clamp systems
• Suitable for indoor and outdoor use

Please Note

Designed for use with 48.3mm outside diameter tube. The customer is responsible for ensuring this fitting is used for its intended purpose, that all socket grub screws are fully tightened using a suitable Allen key before use, and that the completed structure and all fittings are suitable for the intended application and load.
