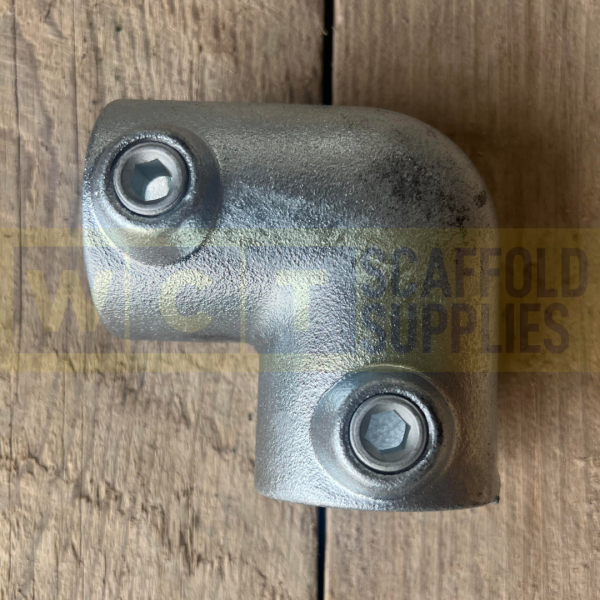

Key Clamp 90° Elbow – 48.3mm

Key Clamp 90° Elbow – 48.3mm

Create strong, neat right-angle corners with our Key Clamp 90° Elbow, designed for use with 48.3mm outside diameter tube. This heavy-duty 48.3mm key clamp elbow joins two tubes at a fixed 90° angle, making it ideal for handrails, guardrails, safety barriers and modular tubular structures.

Manufactured from high-quality galvanised cast iron, this durable key clamp fitting offers excellent corrosion resistance for long-lasting indoor and outdoor use. The fixed elbow provides a secure corner connection without the need for welding, making installation quick, reliable and easy to modify if required.

Compatible with standard 48.3mm outside diameter tube, the fitting is secured using integrated socket grub screws, tightened with a standard Allen key. As part of a modular key clamp system, it enables strong tubular structures to be assembled efficiently while remaining easy to adapt or extend.

This fitting is designed for fixed 90° corner connections. Where a slight angle adjustment is required, our 0–11° Angled Elbow provides the appropriate alternative.

Key Features

• Fixed 90° elbow for 48.3mm tube
• Creates strong right-angle corner joints
• Ideal for handrails, guardrails and safety barriers
• Manufactured from galvanised cast iron
• Corrosion-resistant for indoor and outdoor use
• Tightens using a standard Allen key
• Compatible with modular 48.3mm key clamp systems
• No welding required

Please Note

Designed for use with 48.3mm outside diameter tube. The customer is responsible for ensuring this fitting is used for its intended purpose, that all socket grub screws are fully tightened using a suitable Allen key before use, and that the completed structure and all fittings are suitable for the intended application and load.
