Key Clamp 90° Crossover – 48.3mm

Key Clamp 90° Crossover – 48.3mm

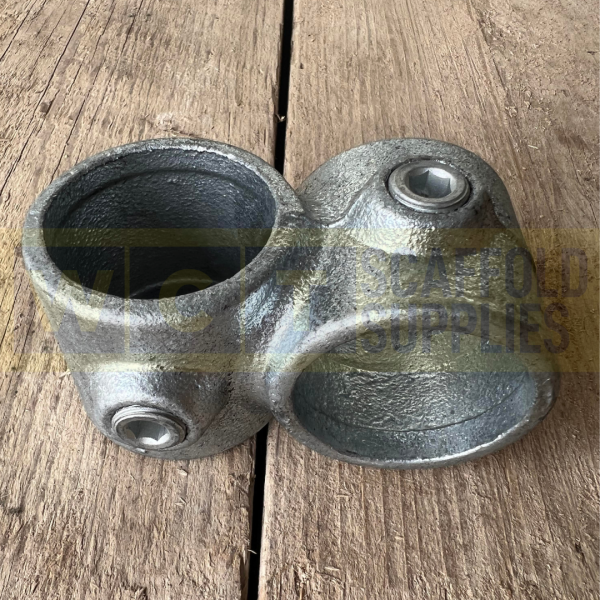

Create a strong offset 90° crossover connection with our Key Clamp 90° Crossover, designed for use with 48.3mm outside diameter tube. This heavy-duty 48.3mm key clamp crossover allows two tubes to cross at right angles without joining within the fitting, making it ideal for handrails, guardrails, safety barriers and modular tubular structures where continuous tubes are required.

Manufactured from high-quality galvanised cast iron, this durable key clamp fitting provides excellent strength and corrosion resistance for reliable indoor and outdoor use. The offset design enables one tube to pass across another at 90°, creating a neat crossover connection while reducing the need to cut or interrupt continuous rails.

Compatible with standard 48.3mm outside diameter tube, the fitting is secured using integrated socket grub screws, tightened with a standard Allen key. As part of a modular key clamp system, it enables strong tubular structures to be assembled, modified and extended without the need for welding.

This fitting is designed to create an offset crossover between two continuous tubes. If your application requires an upright to join two horizontal rails within the fitting, our 48.3mm Key Clamp Two Socket Cross 90° provides the appropriate alternative.

Key Features

• Creates an offset 90° crossover between two tubes
• Allows both tubes to remain continuous
• Ideal for handrails, guardrails and modular tubular structures
• Reduces the need to cut horizontal rails
• Manufactured from galvanised cast iron
• Corrosion-resistant for indoor and outdoor use
• Tightens using a standard Allen key
• Compatible with modular 48.3mm key clamp systems
• No welding required

Please Note

Designed for use with 48.3mm outside diameter tube. The customer is responsible for ensuring this fitting is used for its intended purpose, that all socket grub screws are fully tightened using a suitable Allen key before use, and that the completed structure and all fittings are suitable for the intended application and load.
