Key Clamp Angled Short Tee 0-11° – 48.3mm

Key Clamp Angled Short Tee 0–11° – 48.3mm

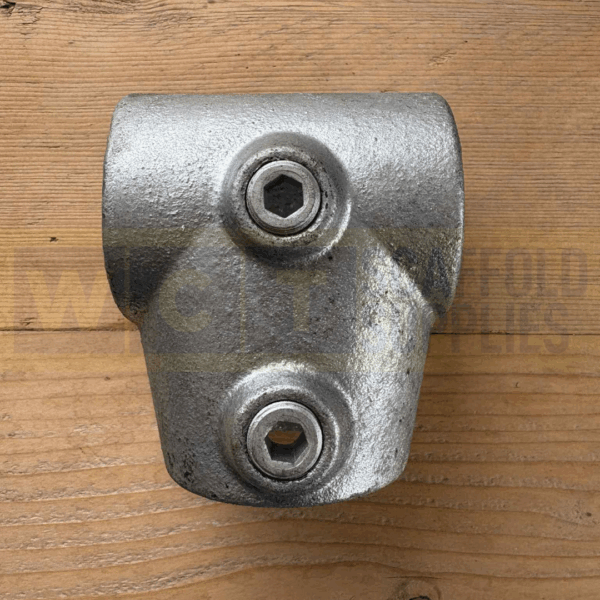

Create a secure connection between two 48.3mm tubes on gently sloping installations with our Key Clamp Angled Short Tee 0–11°. This adjustable 48.3mm key clamp short tee is designed for modular handrail systems, guardrails and safety barriers where a slight change in angle is required.

Manufactured from galvanised cast iron, this durable key clamp fitting combines excellent strength with outstanding corrosion resistance for indoor and outdoor use. The adjustable design accommodates installation angles between 0° and 11°, making it ideal for gentle ramps, pathways and sloping access routes.

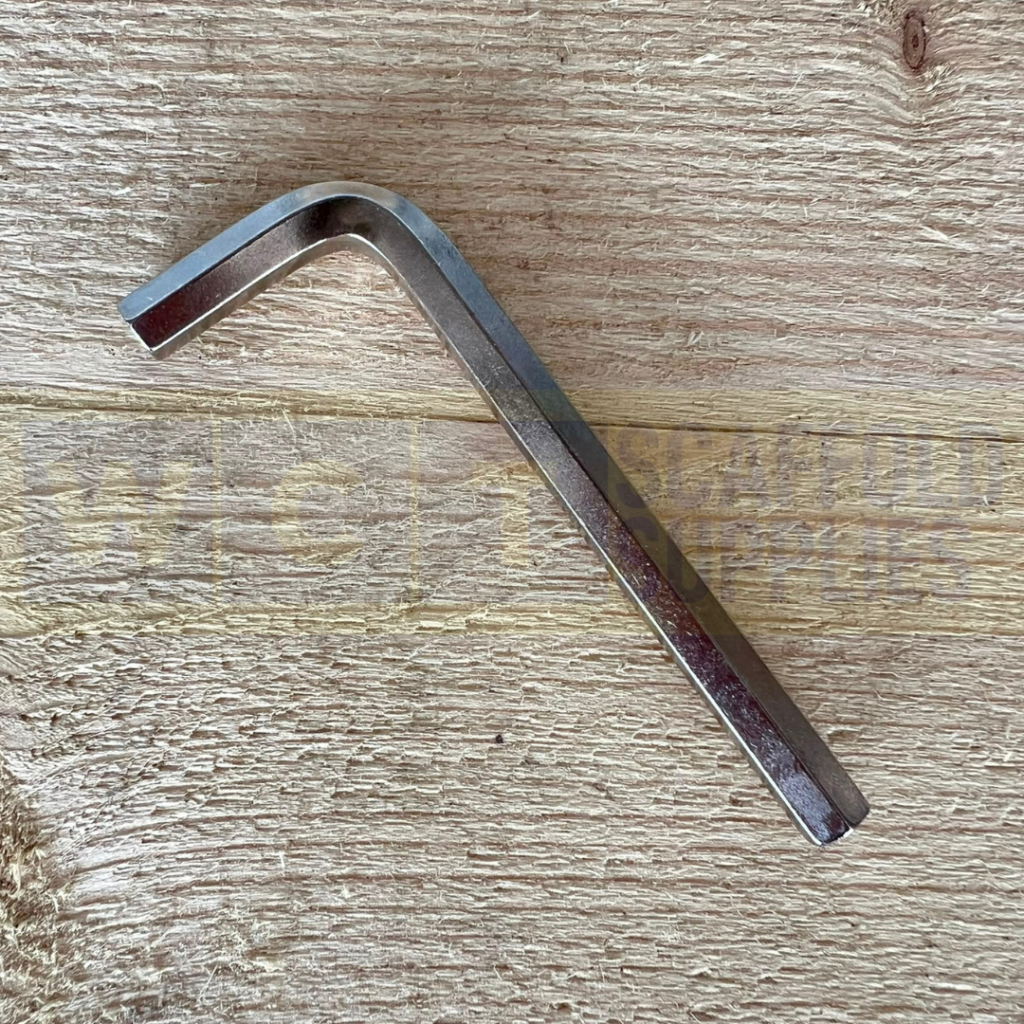

Designed for use with standard 48.3mm outside diameter tube, the fitting is secured using integrated socket grub screws and can be assembled quickly with a standard Allen key. As part of a modular tube clamp system, it allows safe, reliable structures to be built without welding.

This fitting connects two tubes only. If your application requires two tubes to join within the horizontal rail while also connecting to a vertical tube, our 0–11° Key Clamp Angled Long Tee provides the appropriate alternative.

Key Features

• Adjustable short tee for 48.3mm tube
• Angle adjustment from 0° to 11°
• Connects two tubes
• Ideal for gentle ramps and sloping handrails
• Manufactured from galvanised cast iron
• Corrosion-resistant finish
• Compatible with modular key clamp systems
• Allen key installation

Please Note

Designed for use with 48.3mm outside diameter tube. The customer is responsible for ensuring this fitting is used for its intended purpose, that all socket grub screws are fully tightened using a suitable Allen key before use, and that the completed structure and all fittings are suitable for the intended application and load.
