New AB5 Adjustable Base Jack

£4.99
ex. VAT

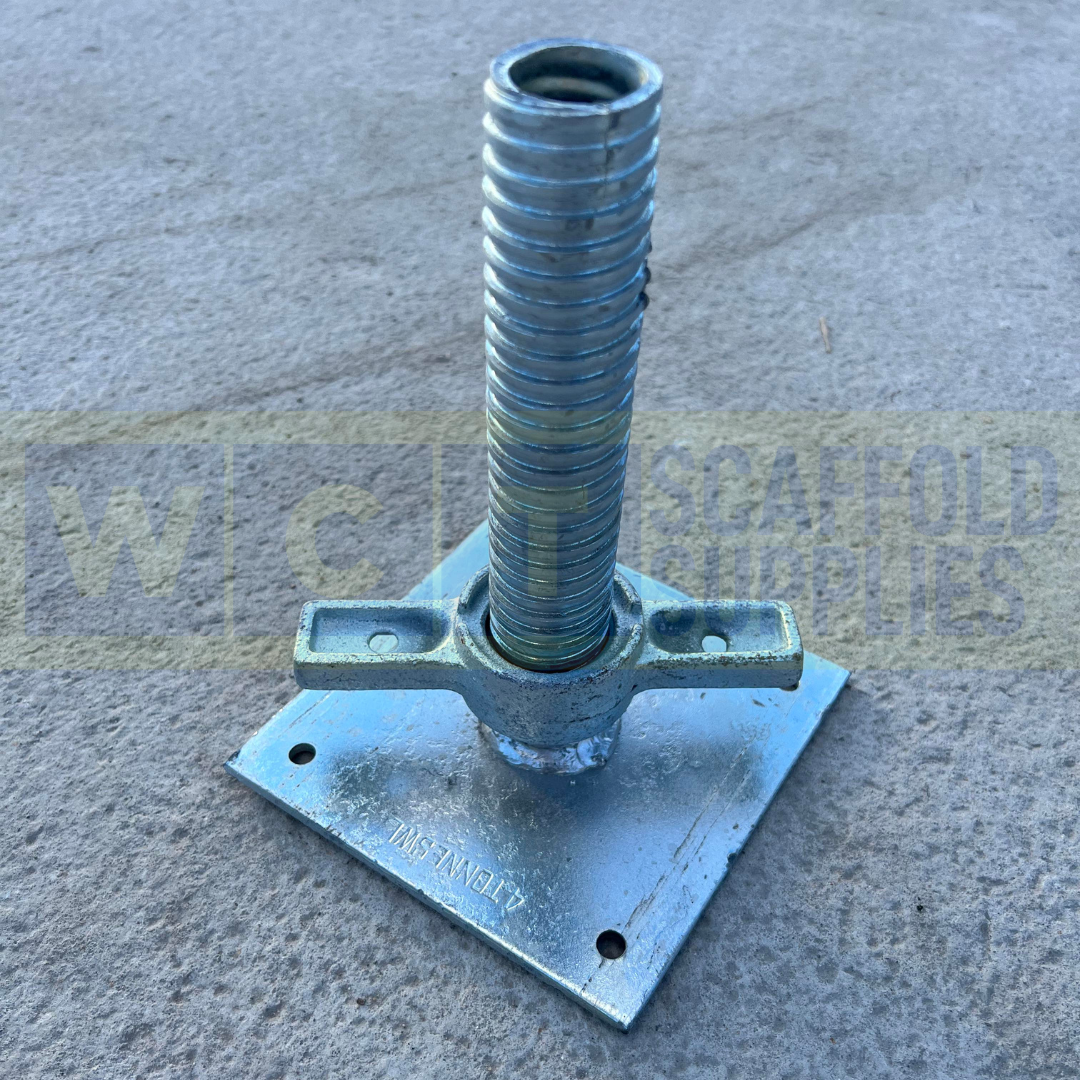

New AB5 Adjustable Base Jack

The AB5 Adjustable Base Jack is a compact and reliable solution for levelling scaffolding, staging, shoring, and temporary structures on uneven ground. Designed for use with 48.3mm scaffold tube, it provides a 4 tonne safe working load (concentric loading) while offering precise height adjustment where only a limited adjustment range is required.

Manufactured from high-quality steel with a bright zinc plated finish, the AB5 offers excellent durability and corrosion resistance for demanding site conditions. Independently tested to comply with BS1139 and EN74, it is an ideal choice for professional scaffolding and construction applications.

Key Features

Suitable for use with 48.3mm scaffold tube
Compact design ideal where minimal height adjustment is required
Safe working load of 4 tonnes (concentric loading)
Bright zinc plated finish for corrosion resistance
4 TPI ACME thread for smooth adjustment
Independently tested to BS1139 and EN74
Suitable for scaffolding, shoring, staging, and temporary structures

Specifications

Safe Working Load: 4 Tonnes (Concentric Loading)
Overall Length: 205mm
Adjustable Range: 120mm
Thread: 4 TPI ACME
Outside Diameter: 38mm
Base Plate: 150 x 150 x 5mm
Finish: Zinc Plated

Please Note

Adjustable base jacks should always be installed by competent persons and used in accordance with current scaffolding guidance. Never exceed the stated safe working load, and ensure adequate thread engagement is maintained during use.
