Adjustable U-Head 4″ (100mm)

£8.60
ex. VAT

Adjustable U-Head 4″ (100mm)

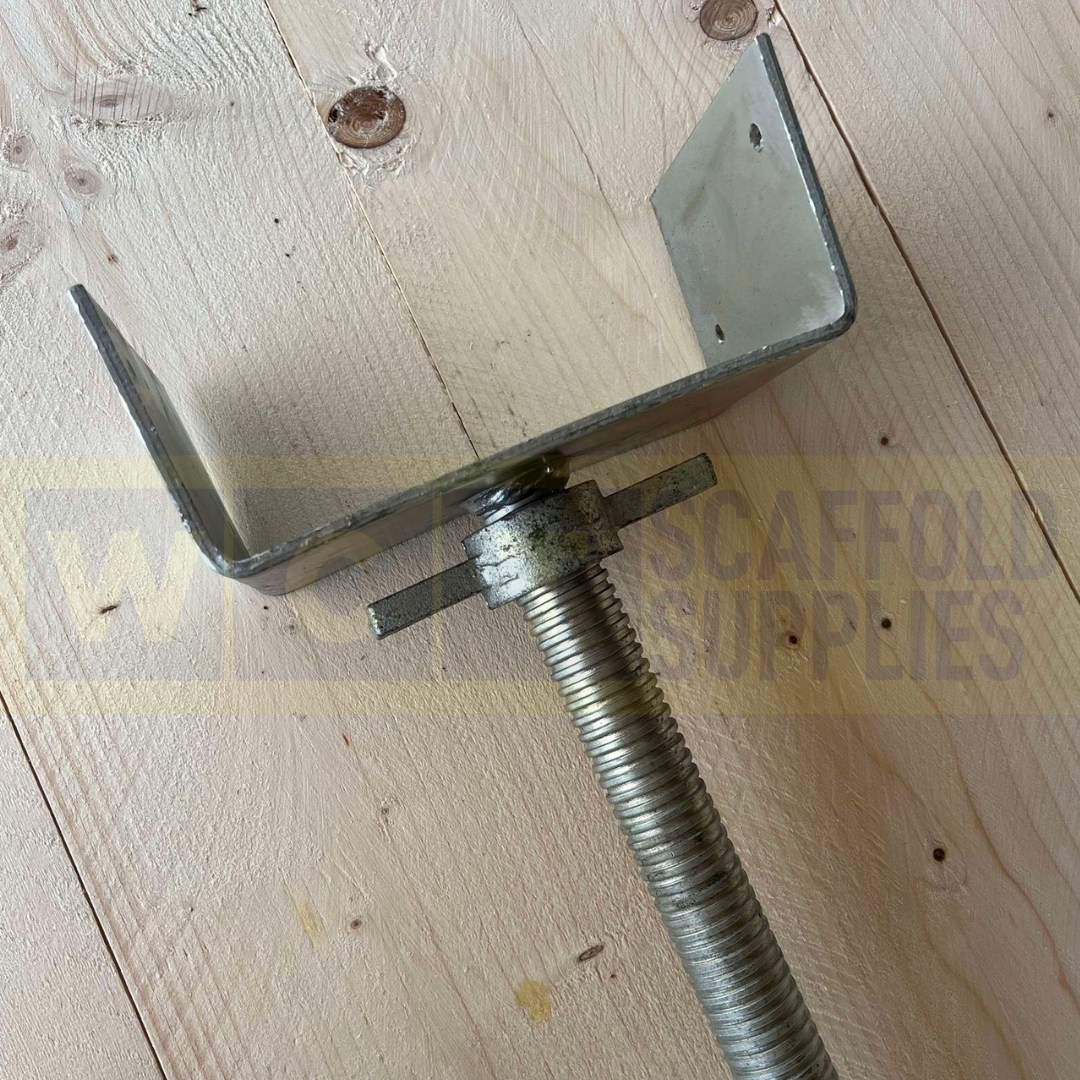

The Adjustable U-Head 4″ (100mm) is designed to fit into the top of a compatible adjustable steel Acrow prop, providing a stable support for timber beams during formwork, falsework, and temporary structural support applications. Featuring a 500mm roll-threaded tube with a double handle collar, it allows precise height adjustment, making it ideal where fine levelling is required.

Manufactured from heavy-duty steel, the adjustable U-head provides a safe working load of 4000kg and is built for demanding construction environments. Its compact 100mm cradle is ideal for supporting narrower timber sections while maintaining a secure bearing surface.

Key Features

Designed for use with compatible adjustable steel Acrow props
500mm roll-threaded tube for accurate height adjustment
Double handle collar for quick and easy adjustment
Suitable for supporting timber beams during temporary works
Compact 100mm wide cradle
Heavy-duty steel construction
Safe working load of 4000kg
Thread: TPI ACME BS4360/50C
Manufactured in accordance with ISO 9001:2015
Independently tested to BS1139 & EN74

Specifications

Safe Working Load: 4000kg
Adjustment: 500mm
Width: 100mm
Gap: 120mm
Height: 100mm
Thread: TPI ACME BS4360/50C

Please Note

This adjustable U-head is designed for use with compatible adjustable steel Acrow props. Always ensure the prop is installed correctly on a suitable load-bearing surface and that the safe working load of the complete support system is not exceeded. Loadings should always be calculated before use and, where necessary, advice should be sought from a Structural Engineer.
